Name: Huanzhong aluminum alloy most competitive price roller shutter slat making machine, high quality and high speed
Brand: Huanzhong aluminum alloy most competitive price roller shutter slat making machine, high quality and high speed
SKU: HZ-77/90
Price: 65 USD
Availability: InStock
Rating: 4.9 (108 reviews)

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Type: Shutters

Model Number: HZ-77/90

Material: Aluminum Alloy

Opening Pattern: Horizontal

Informazioni di base

Model Number: HZ-77/90

Termini di pagamento e spedizione

Packaging Details: Standard water proof package in two 40'GP containers. Most Competitive Price Roller Shutter Slat Making Machine

Supply Ability: 15 Set/Sets per Month

Descrizione di prodotto

Products description

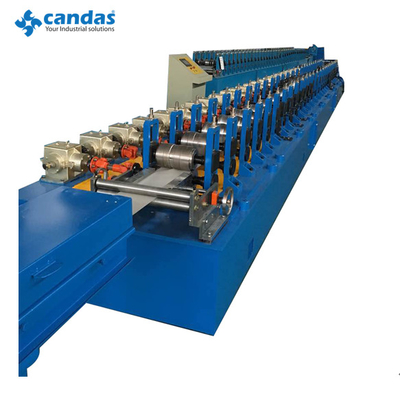

Most Competitive Price Roller Shutter Slat Making Machine

Product Name	Roller shutter slat forming machine
Uncoiler	3 Ton
Material	aluminum sheet/steel sheet
Type	PLC automatic control system
Thickness	0.27-0.50mm
Coil width	229/313mm(according to profile type)
Drive type	gear box with universal joint transmission system/gear transmission system
Forming stations	37
Main motor power	11KW
Forming Spec	HZ-77/90
Forming Speed	20-30m/min
Run out table
Fly saw cutting with servo motor
PLC automatic control system
Low pressure polyurethane foaming machine (SAIP Italy or China Brand)
Technical process: Uncoiler---Feeding guide---Roll forming---Preheating---PU foam injection---Heat preservation---Roll forming---Leveling--- Fly saw cutting with servo motor ---Platform conveyor---Mechanical punching---Run out table
